EKA Mobility Commercial Lineup

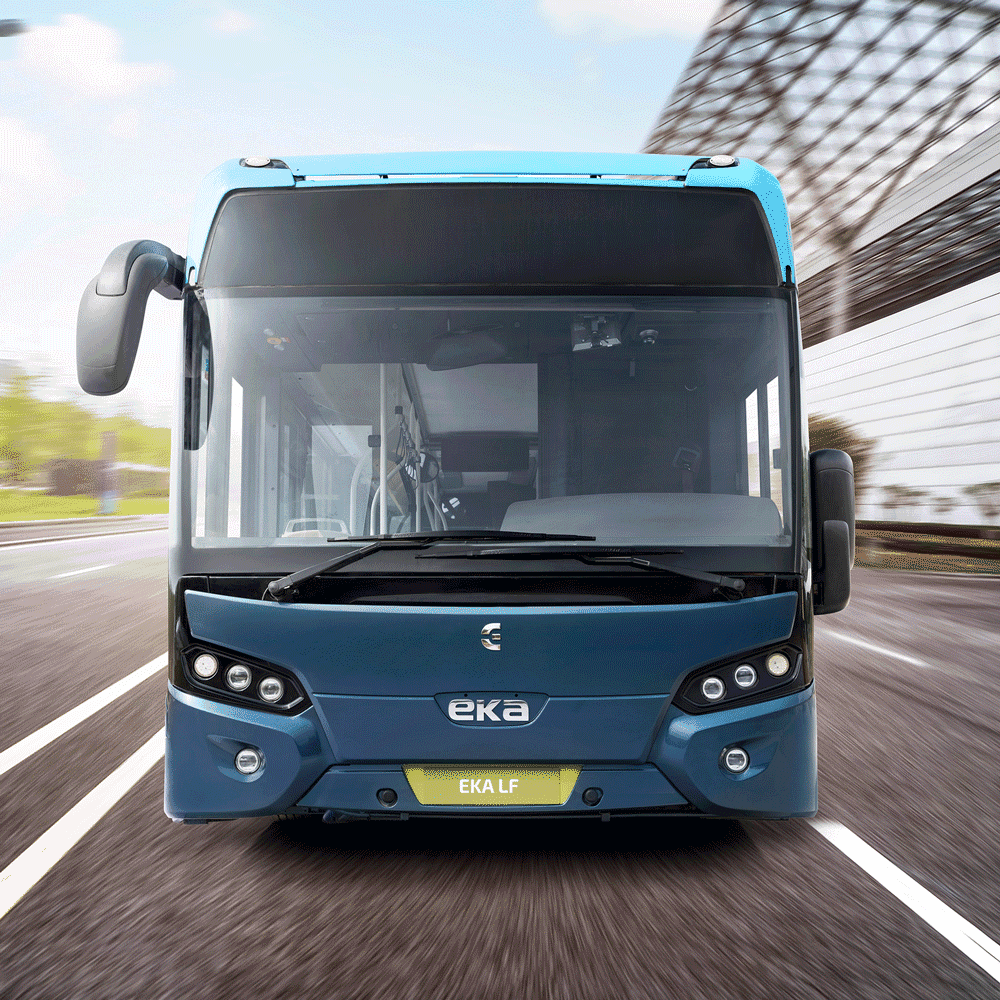

EKA LF
Eco-friendly Operation with Peak Efficiency
With spacious interiors, smooth ride quality, and flexible design, the EKA LF is a zero tailpipe-emission low-floor bus designed for easy accessibility and efficient mobility in specialised environments.
Max Power
160 kW
Max Torque
2500 Nm
Charging
Plug-in CCS2 Fast Charger, Dual Gun / Pantograph for Overhead Charging
Range
280 km*
Gradeability
12%
↳
Product Highlights
1.
Comfort
- Multiple Configurations
- Climate-controlled AC
- Air Suspension with ECAS
- Full Standing Height
- Completely Flat Floor
- Low NVH Levels
- Accommodation for Wheelchair
2.
Economy
3.
Safety
4.
Performance
↳
Detailed Specifications
Max Seating Capacity
D + 27 + WC + 3 Folding Seats; 3 Passenger Doors (LHD Version) | D + 35 + WC + 3 Folding Seats; 2 Passenger Doors (Front - 850mm, Middle - 1350mm) (RHD Version) | D + 33 + WC + 3 Folding Seats; 2 Passenger Doors (Front - 1350mm, Middle - 1350mm) (RHD Version)
L X W X H
12000 X 2550 X 3290 mm
Wheelbase
5850 mm
GVW
18745 kg
Steering
Electrohydraulic Power Steering
Suspension
Front & Rear Electronically Controlled Air Suspension (ECAS)
Brakes
Front & Rear: Disc Brakes with Emergency Braking System (EBS)
Climate control
Heating Ventilation and AC
Type
Service Unit + Free Flow
Capacity
36 kW
Tyre Type
Tubeless Radial
Tyre Size
275/70 R22.5
Max Power
160 kW
Max Torque
2500 Nm
Battery Type
Lithium Ferrous Phosphate (LFP)
Battery Capacity
350 kWhr
Operating Voltage
580 to 660 V
Charging
1. Pantograph for Overhead Charging | 2. Plug-in CCS2 Fast Charger; Dual Gun
Charger Options
180 kW | 240 kW
Charging Time
2.5 hrs | 2 hrs
Range
280 km*
Gradeability
12%
Max Speed
75 kmph
Direct Fleet Assistance
Interested in EKA LF for Your Fleet?
Connect directly with our commercial vehicle engineering team in Naxal, Kathmandu for vehicle specifications, pricing, and local support.
